吊顶酒窖空调

 提示:点击图片可以放大


Fields:(应用领域)
Environmental control: Villa wine cellar, private wine cellar, commercial wine cellar, club wine storage room, large cellar, ground cellar, shopping malls cellar, large wine library, the cellar, displaying wine cellar, Euclidean cellar, French style wine cellar, Italian style wine cellar, domestic wine cellar, CHCT cellar, and etc.
环境控制领域:别墅酒窖、私人酒窖、商用酒窖、会所储酒室、地下酒窖、地面酒窖、商场酒窖、大型酒库、会客型酒窖、展示酒窖、欧氏酒窖、法式酒窖、意式酒窖、家用酒窖及恒温恒湿酒窖等。

Flexible (灵活):
1) Adjustable fan speed (调速风机)
2) Air modes (up blowing, down blowing, side blowing, back blowing, and front blowing) (送风方式多样(上送,下送,侧送,后送,前送))
3) Modular (assemble convenient) (模块化(组合方便))
4) Multiple type modules (多型式模块)
5) Optional EC fan, sunk EC fan design, saving energy by 20% compared with ordinary EC fan (自可选的EC风机,沉没式EC风机设计,与普通EC风机相比节能20%)

Efficient (高效):
1) Copeland scroll compressor with high energy efficiency ratio (Copeland涡旋式压缩机,高能效比)
2) EC fan, 20% savings more than the regular fan (EC风机,比普通风机节能20%)
3) V type evaporator, in the limited space to increase the heat transfer area (V型蒸发器,在有限的空间内增大换热面积)
4) Intelligent control panel (EN/CH font), LCD interface, simple, convenient, easy to maintain and settings (中英文智能控制面板,LCD操作界面,简洁,方便,易于维护和设置)
5) Standard RS485 and IP communication interface (标准的RS485和IP通信接口)
6) Powerful teamwork control and communication functions (强大团队控制和通信功能)

Maintenance easily (易维护):
1) Easy disassembly (易拆卸)
2) Less consumption (少消耗)
3) Optimized structure (最优化的结构)
4) New engineer maintenance window (最新工程师维护窗口)
5) Maintenance window (opening while equipment is operating) (维护窗口(设备运行中开放))
6) Routine maintenance and troubleshooting (便于平常维护及判断故障)

Reliable (可靠性):
1) Quality components with strict certification (过严格认证的高品质部件)

精密空调 机房精密空调

2) Advanced controller automatically balanced operation (先进的控制器自动平衡部件的运行和磨损)

3) Control system with expert diagnosis and fault alarm function (具有专家自诊断和故障预警功能的控制系统)
4) Skeleton frame riveted steel rivets, stable, sturdy, and easy separation (碳钢铆钉铆接的骨架机身,既稳定坚固又容易拆分)
5) Inner and outer panels, built-in fire insulation materials (内外双层面板,内置防火隔热材料)
6) Compressor of high and low pressure, exhaust temperature, air volume loss, and fan overload multiple protective measures (压缩机高低压,排气高温,风量丢失,风机过载等多重保护措施)
7) High reliability, flexibility, low cost in entire life cycle (高可靠性,灵活性,整个寿命周期费用低)

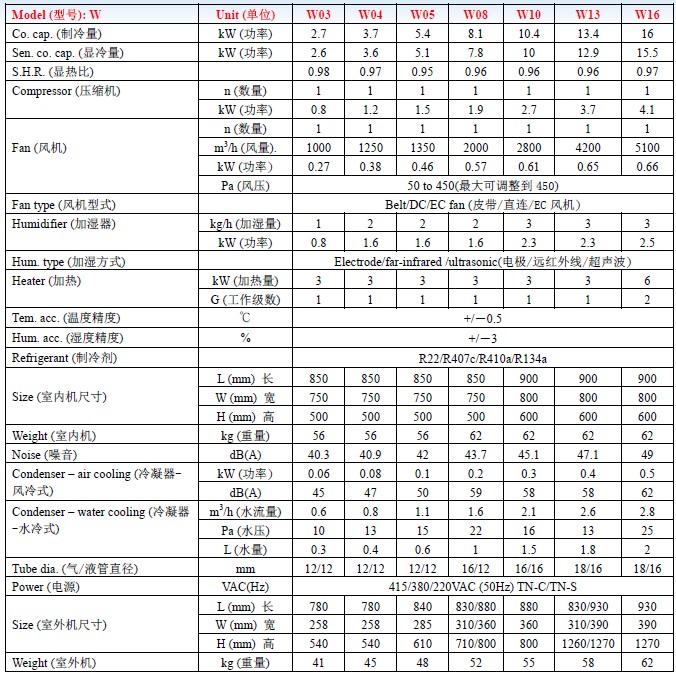

Specifications for W series (W系列吊顶式风冷/水冷规格):
